BURGERS DOUBLE DECK
TRAILER SPECS.
13.6m. 40 Block Pallets. Immediate Integration. Fully UAE-Compliant.
✓ UAE Res. 138 Compliant
✓ Official Royal Burgers Distributor
✓ 40 block pallets per trailer
13.6m. 40 Block Pallets. Immediate Integration. Fully UAE-Compliant.
| Parameter | Value |
|---|---|
| Length | 13.60m |
| Height | 4.00m |
| Width | 2.55m |
| Load weight | 33 ton |
| Payload | 40 block pallets |
| Environment | Configuration |
|---|---|
| RETAIL/DRY | Plywood or Dry lining. External elevator compatible. |
| FLOWER TRANSPORT | CC trolley compatible. Ground-level loading. |
| RACETRAILER | Custom interior fit-out. Full conversion to OEM standard. |
| Metric | Standard Trailer | Double Deck |
|---|---|---|
| Loading floors | 1 floor | 2 floors |
| Pallet capacity | 30 pallets | 40 block pallets |
| Trips for same load | 2 trips | 1 trip |
| CO₂ per pallet | Baseline | –40% |
| Fuel cost per pallet | Baseline | –35% |
| Driver hours per delivery | Baseline | –33% |
The Double Deck Trailer stands at 4.00m, well within the UAE maximum of 4.30m set by Cabinet Resolution No. 138 (2023). It clears all standard overpasses and loading docks without modifications. Width is 2.55m (max allowed: 2.60m).

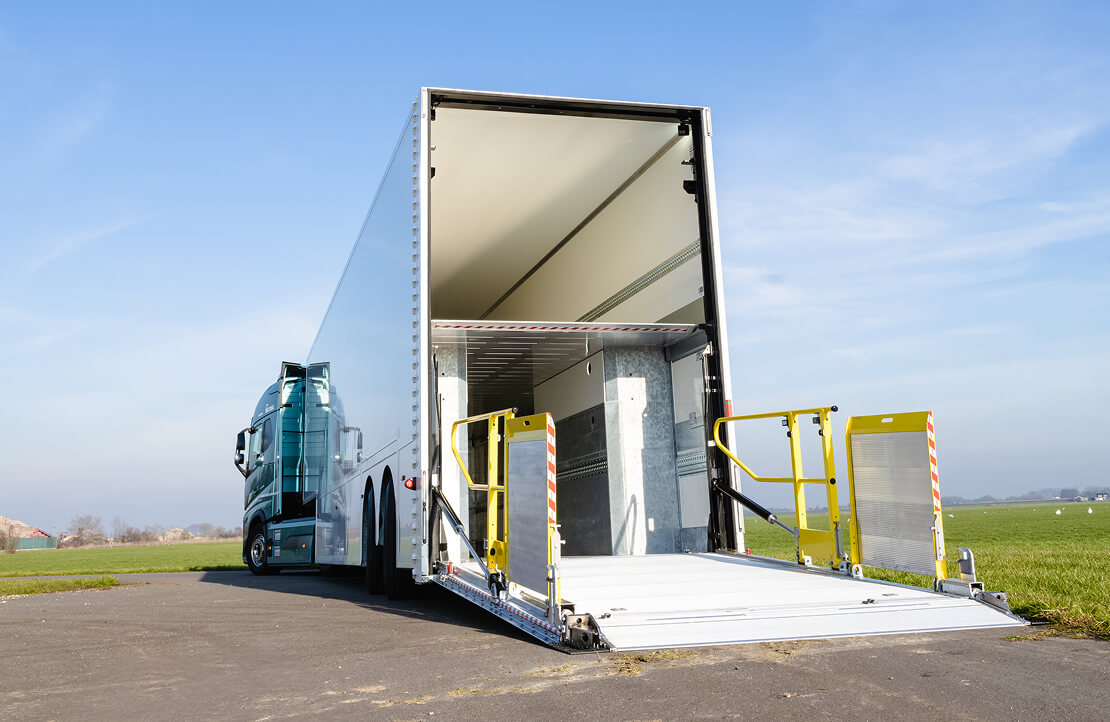

Loading time is comparable to a standard trailer. The lower deck loads via a standard dock, then the upper deck is raised hydraulically (takes approximately 2 minutes), and the upper level is loaded. Total additional time versus a standard trailer is under 15 minutes per full load.
Tell us your fleet size and cargo type. We deliver a tailored specification with pricing within 48 hours — no obligation.
